SPÉCIFICATIONS
CADRE
META POWER TR BOSCH, 140 mm
29″, Alloy 6066, triple butted tubes, T4, T6.
MOTEUR
BOSCH Performance Line CX
Max. torque: 85N.m, 250W
BATTERIE
BOSCH PowerTube 625, 625Wh
BOSCH 4A Charger, Compact size & lightweight
Compatible w/Bosch PowerMore 250 for extra range
AFFICHAGE
BOSCH System Controller
BOSCH Mini Remote currently not available in the USA

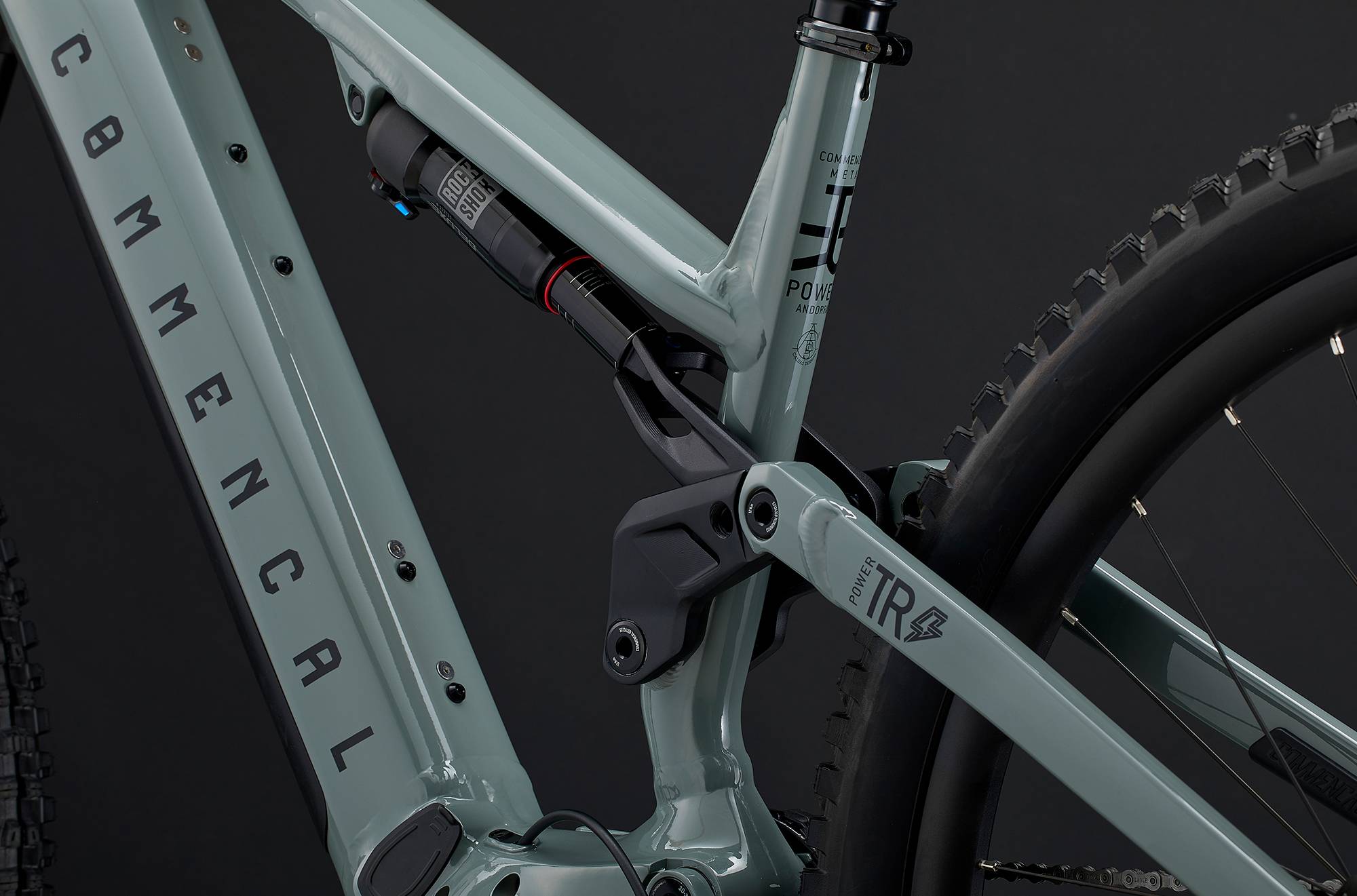

AMORTISSEUR
ROCKSHOX Deluxe Select +
210 x 55 mm, RT damper, DebonAir, rebound, 2 position compression (open/firm), 1 Token neg. 4 Token pos

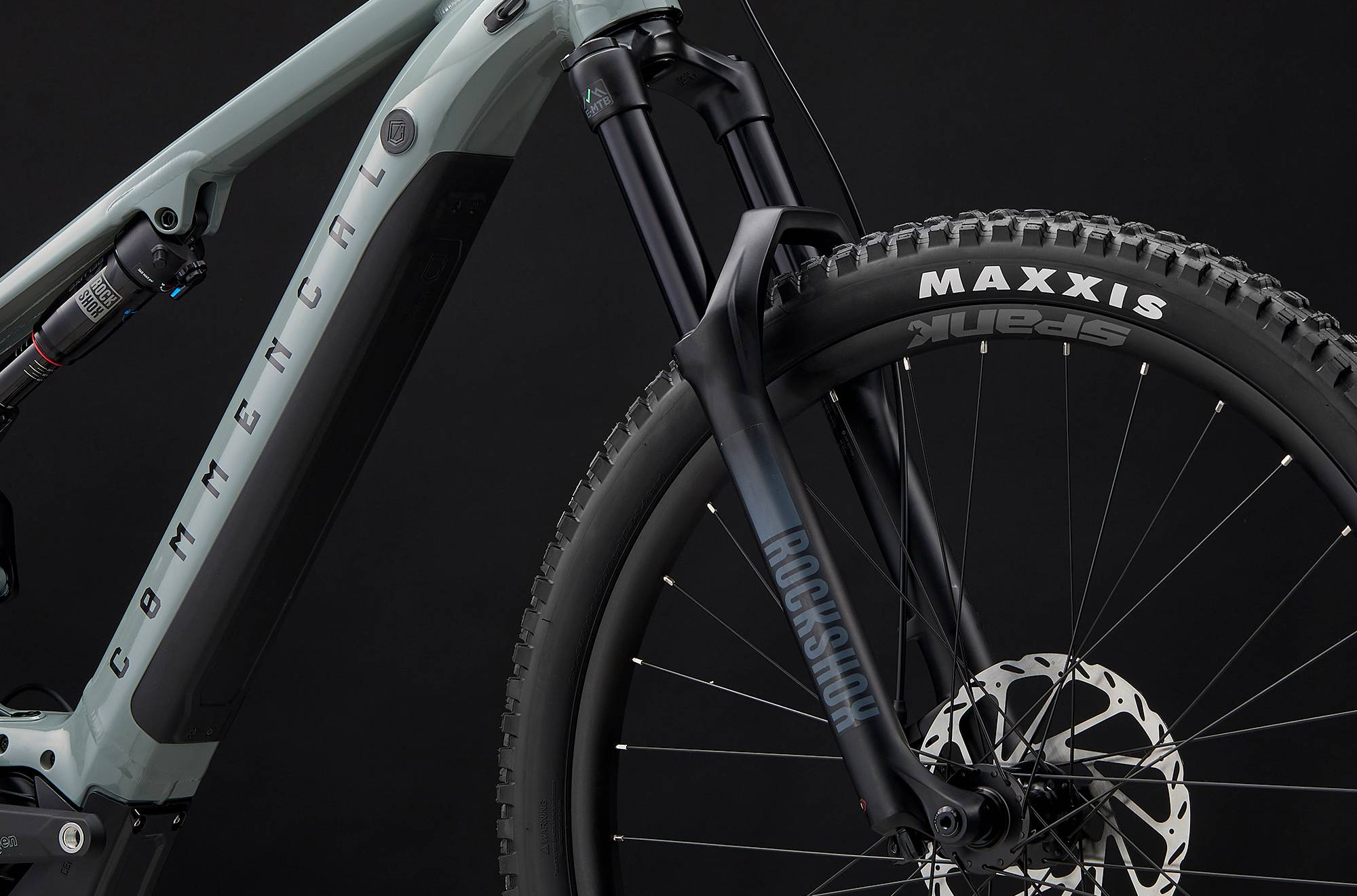

FOURCHE
ROCKSHOX 35 Gold RL, 150 mm travel
29 », Motion Control damper, DebonAir, rebound, LSC to lock, (Boost 15 x 110 mm), 44 mm offset, 0 Token
JEU DE DIRECTION
ACROS ZS56 / ZS66
Alloy cups, sealed bearings
POTENCE
RIDE ALPHA 40 EXTERNAL
40 mm extension, 31,8 mm
CINTRE
RIDE ALPHA R20 POWER on S – RIDE ALPHA R27 POWER on M / L / XL
Internal Di2 cable routing – 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S – 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L – 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
POIGNÉES
ODI Longneck
Soft compound, single clamp, black
FREINS
SRAM G2 RE, 4 pistons, steel-backed metal sintered pads
Rotors: SRAM G2 200 mm, 6-bolt
SHIFTERS
SRAM SX Eagle
12s
GUIDE CHAINE
RIDE ALPHA Upper Guide
32-34t
DÉRAILLEUR
SRAM SX Eagle
12s
BOITIER DE PÉDALIER
BOSCH
PÉDALIER
E13 E*Spec Plus Bosch CX, 160 mm crank arms
Chainring: E13 E*Spec Plus Bosch CX, 34t, direct mount
CHAINE
SRAM NX Eagle
12s
CASSETTE
SRAM PG-1210
12s, 11-50t
JANTES
Rear: SPANK Spike Race 33 – Front: SPANK Spike Race 33
Rear: 29 », 32h, 28 mm inner width – Front: 29 », 32h, 28 mm inner width
MOYEUX
Rear: FORMULA eHL-148S – Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, e-bike specific, SHIMANO Hyperglide – Front: 32h, 15 x 110 mm, sealed bearings
RAYONS
SAPIM Strong
J-Bend, 2.34/2.0mm, double butted, stainless, with Nylok, black
PNEUS
Rear: MAXXIS DHR II – Front: MAXXIS DHR II
Rear: 29″ x 2.4″ WT, 3C Maxx Terra, Exo+, Tubeless Ready – Front: 29″ x 2.4″ WT, 3C Maxx Terra, Exo+, Tubeless Ready
TIGE DE SELLE
KS Rage I
31.6 mm, travel: 125 mm on S, 170 mm on M/L, 190 mm on XL, SouthPaw alloy remote
SELLE
FIZIK Terra Aidon X5
145 mm width, S-Alloy Mobius rails
POIDS
24.5 kg / 54.01 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
PÉDALES INCLUSES
Yes
COULEUR
Pyrite Grey
Shiny finish
ACCESSOIRES
RIDE ALPHA CNC pedals, motor protector, chainstay protector, seatstay protector, user manual
*Actual product may differ from pictures.
*Please note that bike specs are subject to change without prior notice.
