SPÉCIFICATIONS
CADRE
365
650b, Alloy 6069, triple butted tubes, T4, T6 on XS
700c, Alloy 6069, triple butted tubes, T4, T6 on S, M, L, XL
FOURCHE
365
Internal brake hose routing, Alloy 6069
JEU DE DIRECTION
ACROS IS52 / IS52
Integrated cable routing
POTENCE
RIDE ALPHA Gravel 70
70 mm extension, 31.8 mm

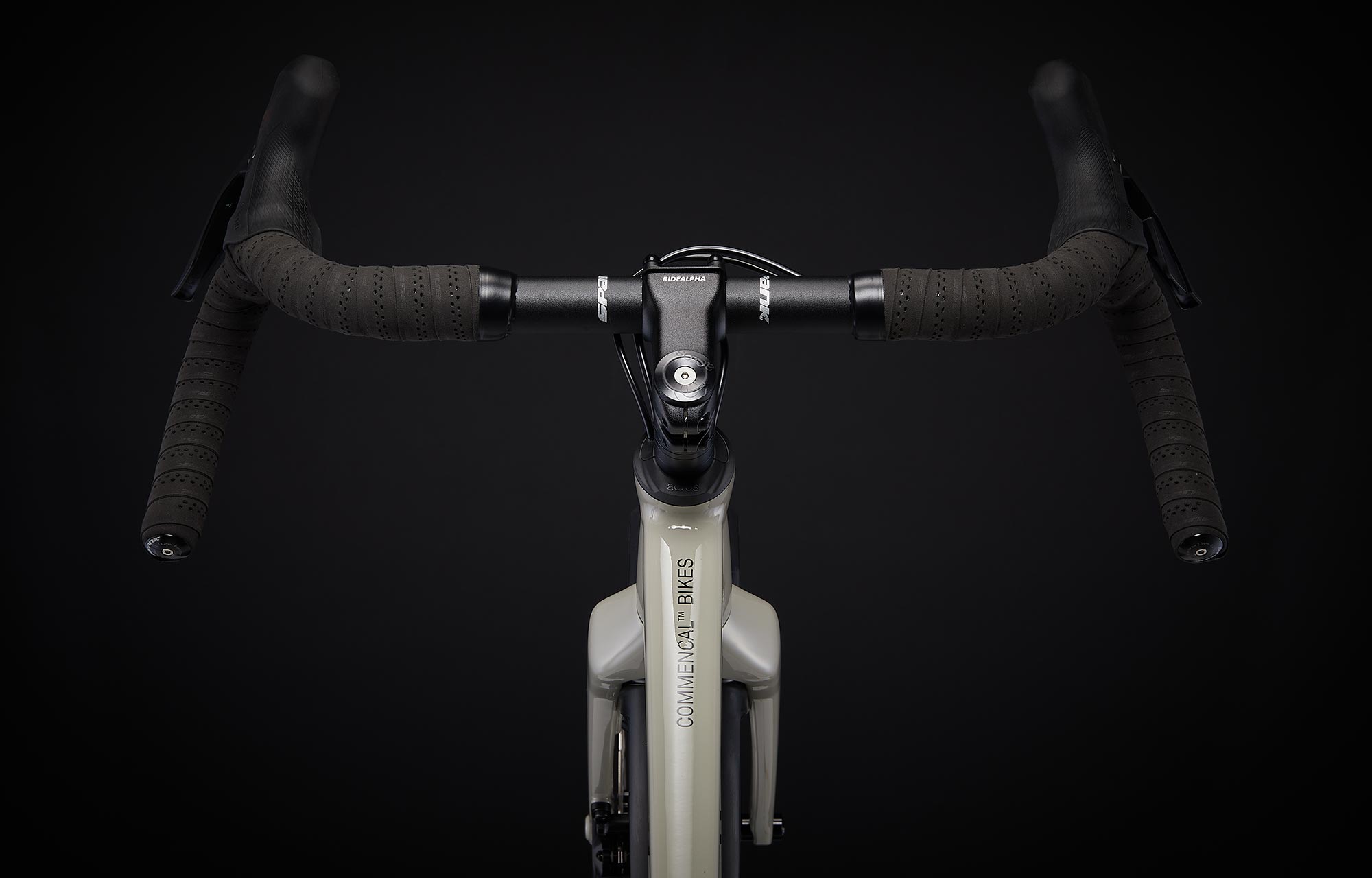

CINTRE
SPANK Flare 25 Drop Bar
31.8 mm, 440 mm width, 65 mm reach, 110 mm drop, 25° flare on XS, S
31.8 mm, 460 mm width, 65 mm reach, 110 mm drop, 25° flare on M
31.8 mm, 480 mm width, 65 mm reach, 110 mm drop, 25° flare on L, XL
POIGNÉES
SPANK Wing Gravel Dropbar Tape & Plug
220 cm, Black
FREINS
SHIMANO GRX RX400, Flat Mount, resin pads
Rotors: SHIMANO SM-RT66 180 mm, Centerlock
SHIFTERS
SHIMANO GRX RX600
11s
DÉRAILLEUR
SHIMANO GRX RX812
11s
BOITIER DE PÉDALIER
SHIMANO BB-RS500
Pressfit
PÉDALIER
SHIMANO GRX RX600, 170 mm crank arms on XS/S, 172.5 mm on M/L, 175 mm on XL
Chainring: SHIMANO GRX RX600, 40t
CHAINE
SHIMANO 105
11s
CASSETTE
SHIMANO Deore M5100
11s, 11-42t
JANTES
DT SWISS G540
650b, 24h, 24 mm inner width, tubeless ready on XS
700C, 24h, 24 mm inner width, tubeless ready on S / M / L / XL
MOYEUX
Rear: FORMULA RX-300 – Front: FORMULA RX-812
Rear: 24h, sealed bearings, 12 x 142 mm, Shimano Hyperglide – Front: 24h, sealed bearings, 12 x 100 mm
RAYONS
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black
PNEUS
Rear: MAXXIS Rambler – Front: MAXXIS Rambler
Rear & Front: 650x47b, EXO, Tubeless Ready on XS – 700x45c, EXO, Tubeless Ready on S / M / L / XL
TIGE DE SELLE
RIDE ALPHA
27.2 mm, 350 mm length
SELLE
FIZIK Terra Alpaca X5
145 mm width, S-alloy rails
POIDS
10,9 kg / 24.03 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
PÉDALES INCLUSES
No
COULEUR
Chalk
Shiny Finish
ACCESSOIRES
Down tube protector, chainstay protector, fork mudguard
